JMWE for Jira Cloud: Configuring post functions

configuring-post-functions
Appfire

Appfire

Nov 22, 2021

Automatically CREATE SUBTASKS when a new story is created, and CLOSE the story when all subtasks are closed.

Part 1: Create one subtask | Part 2: Create multiple subtasks | Part 3: Close the story


Part 1 of 3: When a new story is created, automatically create a subtask for that story.

  • Edit your workflow. Select the diagram view.
  • Choose the initial Create transition. (The initial transition does not allow adding conditions but supports validators and post functions).
  • Click Post Functions and then Add Post Function in the upper right corner of the list.
  • Select the Create issue(s) post function and click Add.
  • Leave Project as the default ("Same as current issue"), where the subtask will be created.
  • For Issue type, select "Sub-task".
  • For Parent issue, leave the default value ("Current issue").
  • Optional: In the Link to new issue section, you can add a link type to link the parent issue and the subtask.

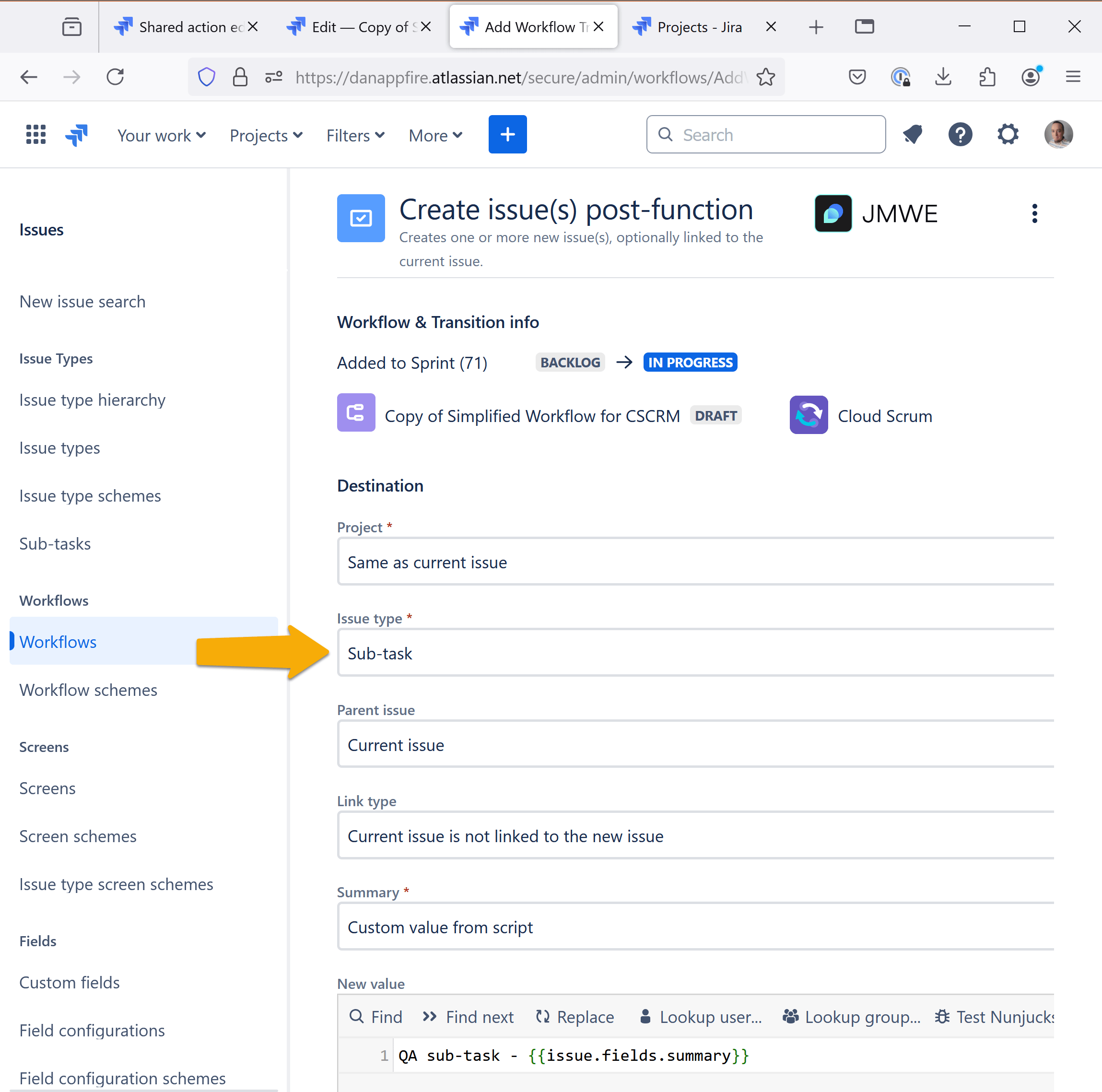

Jira workflow screen showing the 'Create issue(s) post-function' setup with a focus on the 'Sub-task' issue type in the workflow transition settings

You can specify the value of fields in the new issue, but in this case, let's just supply the summary: In the JMWE script editor, update "CLONE" to the summary of the subtask:

QA sub-task - {{issue.field.summary}}

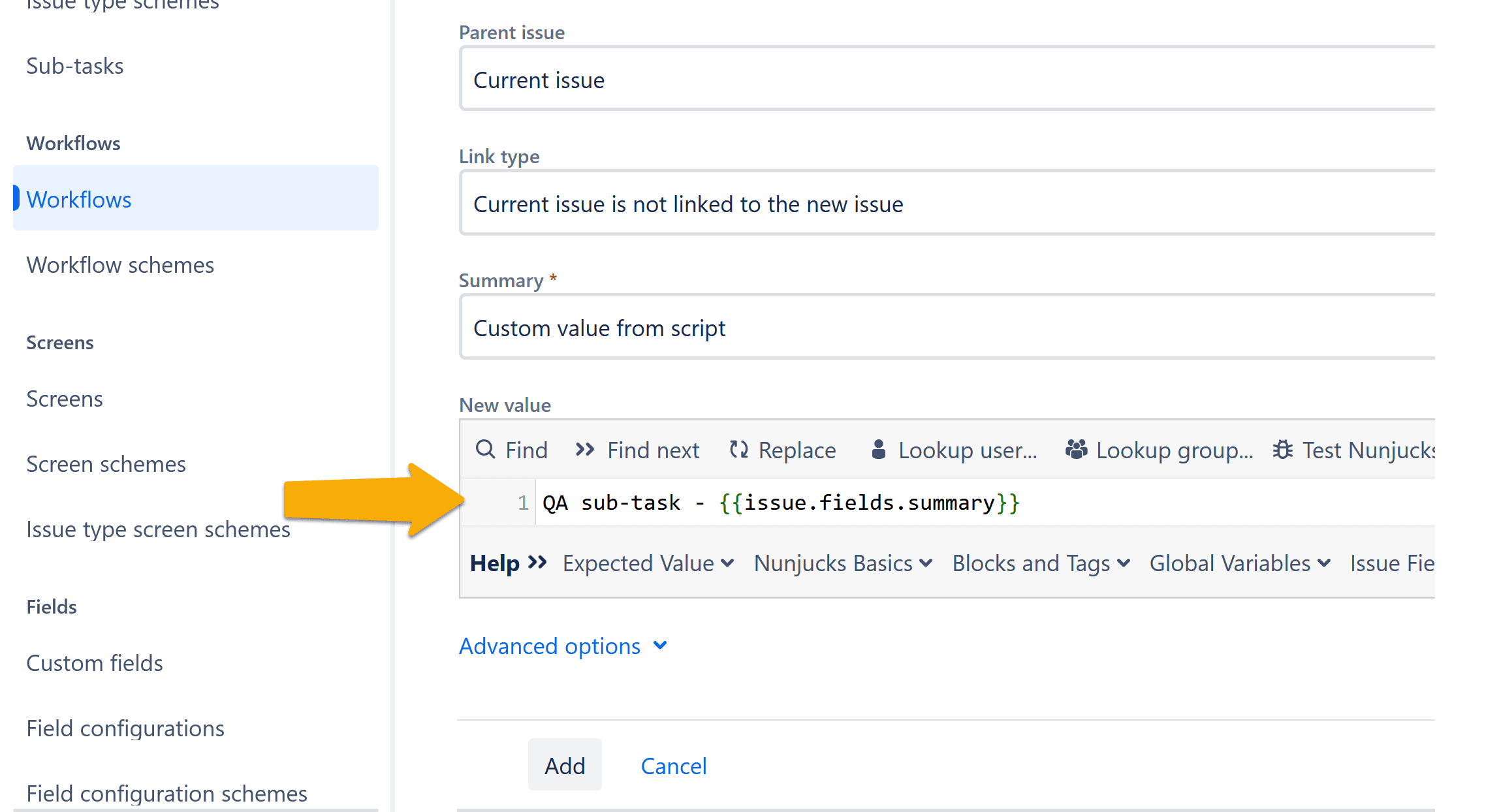

Jira configuration page where a custom script sets the summary for a new sub-task using the syntax '{{issue.fields.summary}}' in the 'New value' field

  • You can optionally set additional fields and many other parameters. We'll skip these as we only need to create a new subtask.
  • Click Add to add the post-function, publish your draft workflow, and check your work by creating a new issue.

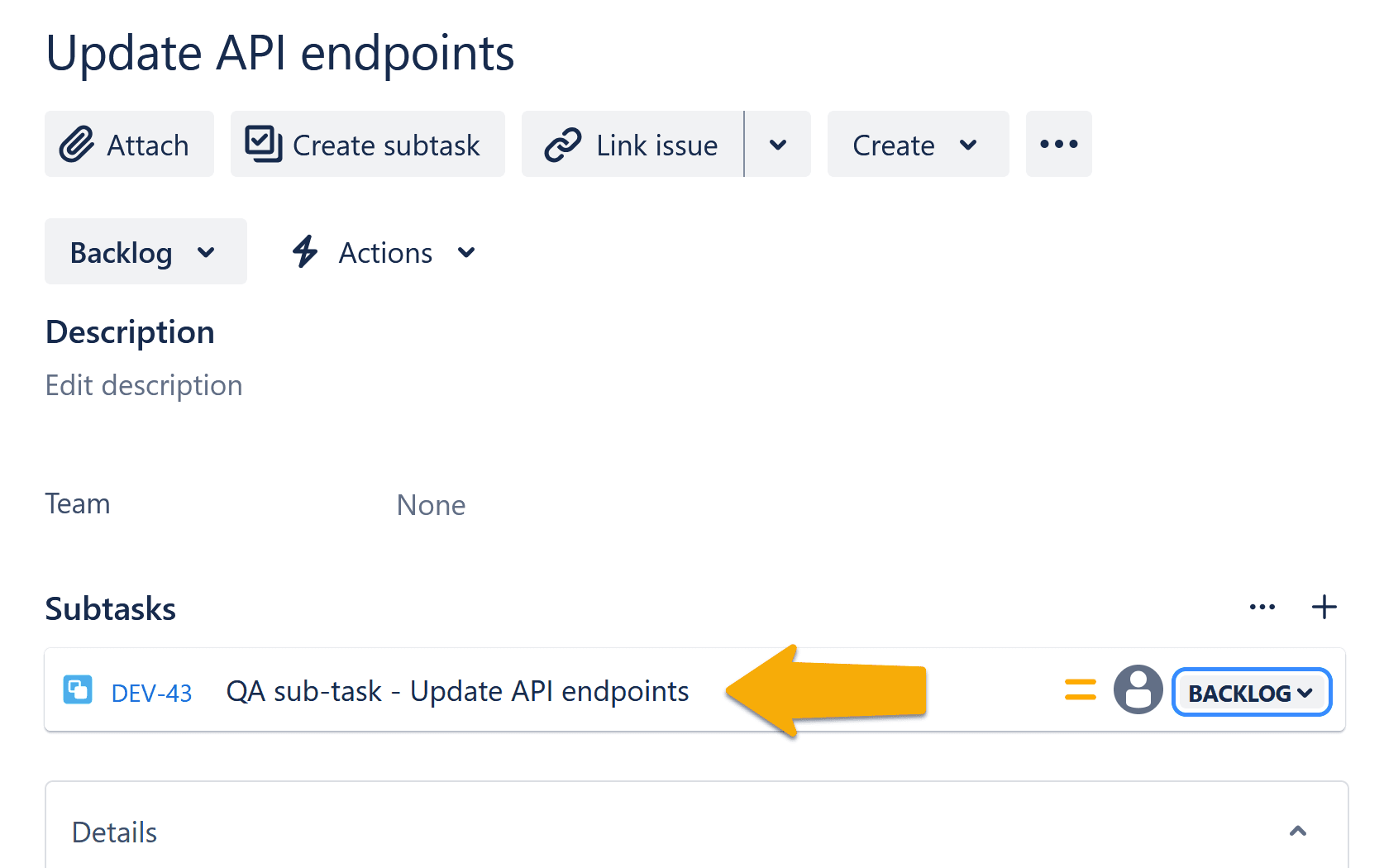

Jira task view highlighting a sub-task named 'QA sub-task - Update API endpoints' created under the main task titled 'Update API endpoints


Part 2 of 3: Automatically create MULTIPLE subtasks - development subtask, QA sub-task, and documentation subtask - when a new story is created.

Instead of creating several "create issue" post functions described above, create multiple subtasks all in one post-function. It is easier to build and maintain!

  • Edit your workflow. Select the diagram view.
  • Choose the initial Create transition.
  • Go to Post Functions, and edit the Create issue(s) post function we created in Part 1 above.

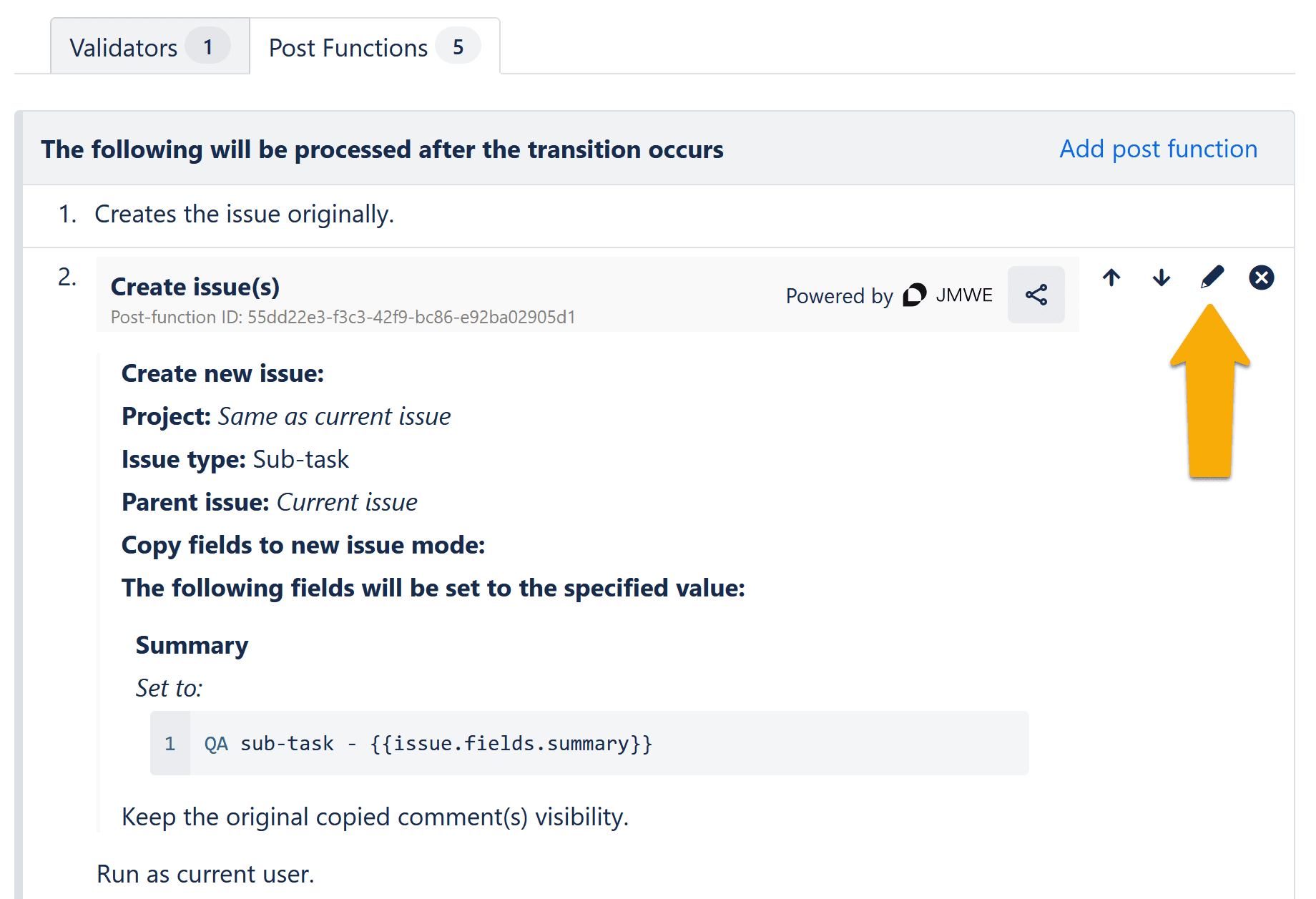

Jira post-function settings screen for 'Create issue(s)' function, with options to edit, move, or delete the function highlighted at the top right

  • To create multiple subtasks simultaneously, navigate to the Multiple issue creation section and select "Create multiple issues."
  • To specify an iterator, set up a list of values for creating new subtasks. Type in:
Development sub-task, QA sub-task, Documentation sub-task

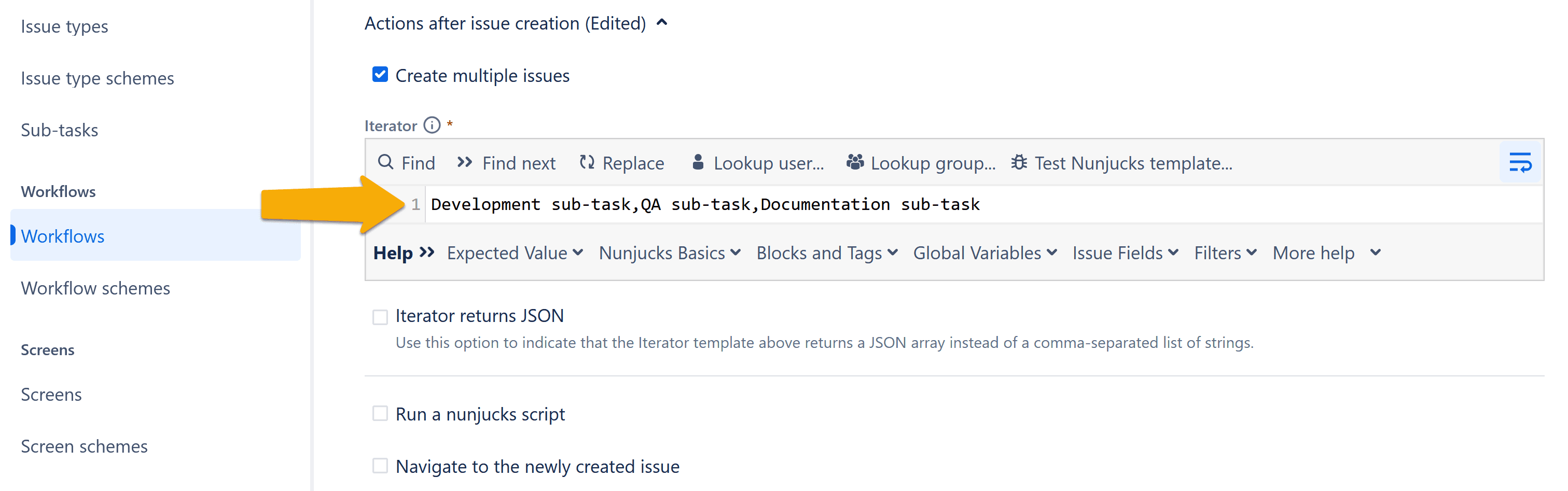

Jira workflow configuration screen showing an iterator setup for creating multiple sub-tasks with labels like 'Development sub-task' and 'QA sub-task' using a comma-separated list

  • Go up to the Summary field and insert the values of the iterator - using {{it}} - which represents each value in the iterator section we set up in the previous step.

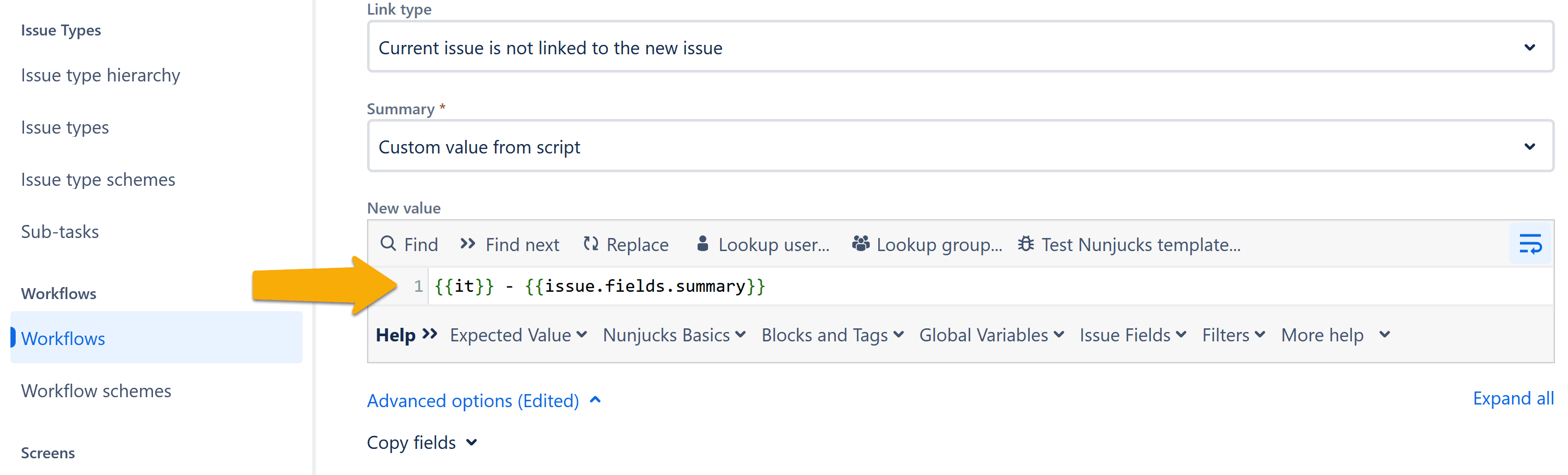

Jira post-function configuration where a custom script sets the summary for a sub-task with the syntax '{{it}} - {{issue.fields.summary}}' in the 'New value' field

Click Update to save the modified post-function, publish your draft, and check your work.


Part 3 of 3: Automatically CLOSE the story when all subtasks are closed.

  • Edit your workflow.
  • Select the DONE transition. When the DONE transition is triggered on the last subtask to be closed, then the parent story should be automatically closed.
  • Go to Post functions, and click Add post function.
  • Select Transition issue(s) post-function, and click Add.
  • For Target issues, select “Parent issue of the current sub-task.”
  • Under Transition, click the Transition picker button.
  • Select our workflow and the transition we want to trigger, which is "Done."
  • To add, click on Use Transition ID, which is safer than using the Transition Name (in case the transition is renamed).

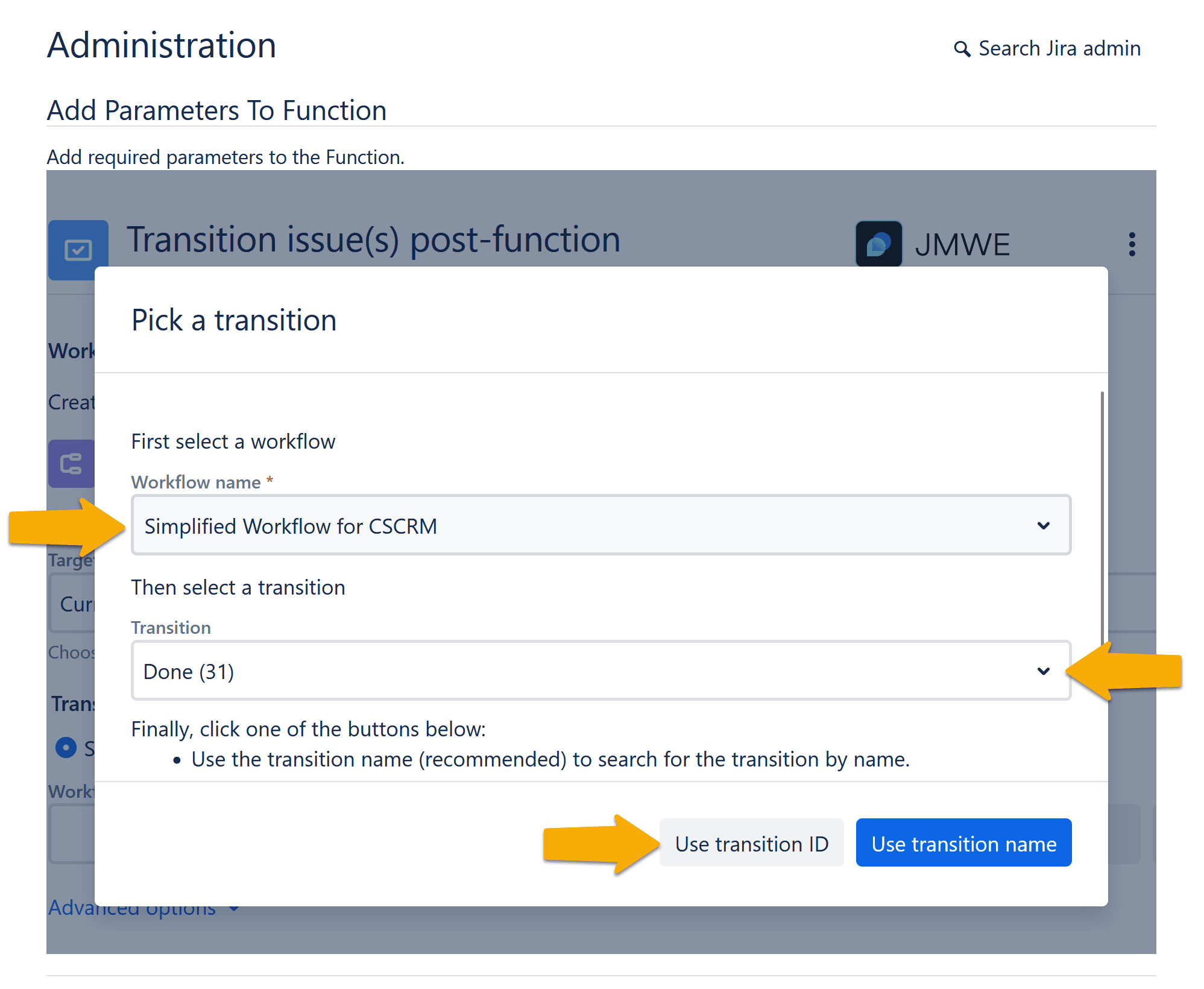

Jira administration screen for selecting a transition within the 'Transition issue(s) post-function,' highlighting options for workflow and transition selection

  • Click Add to complete the post-function configuration. This will ensure that when the DONE transition is triggered, it will also trigger the DONE transition on the parent task.

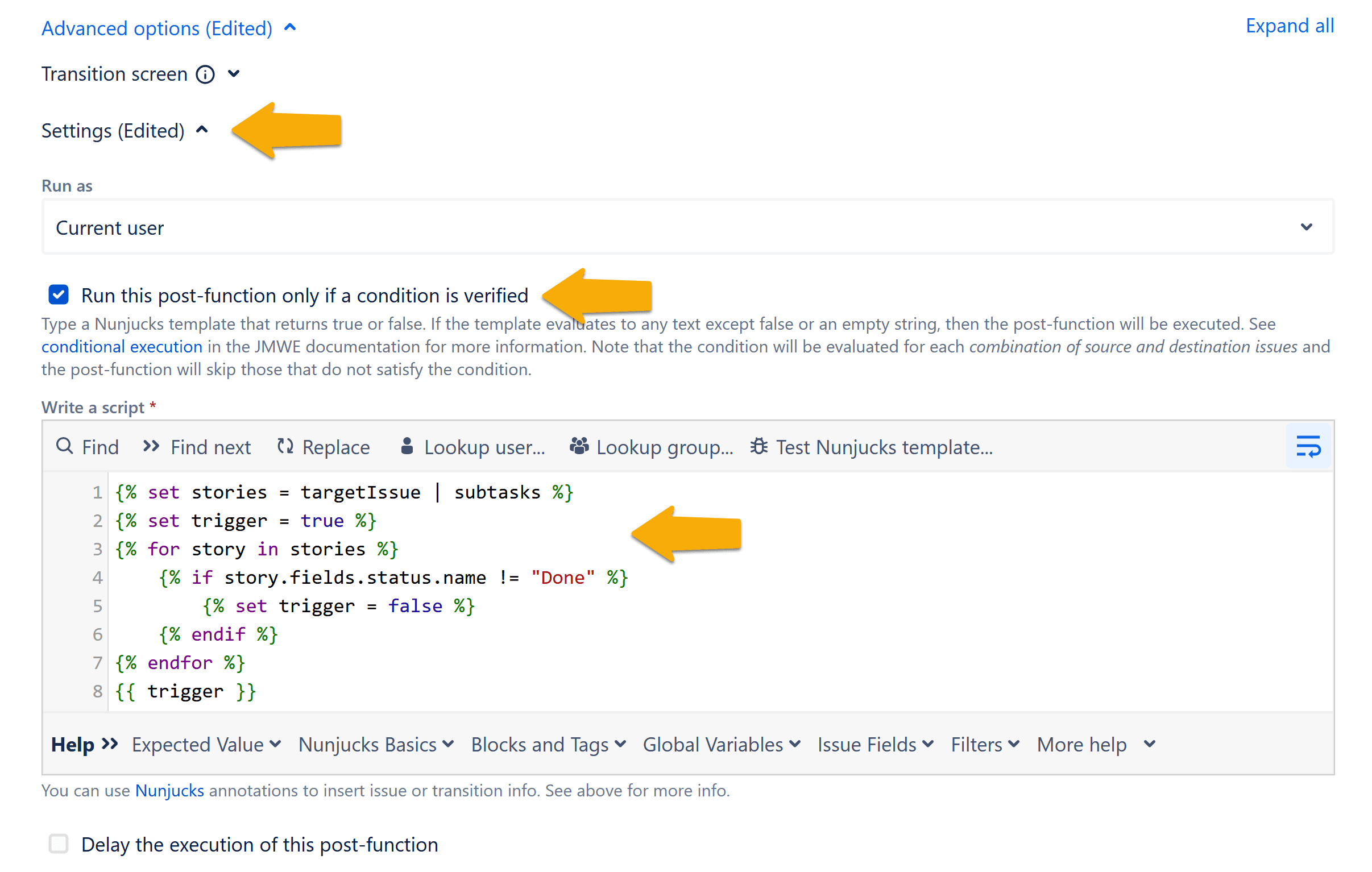

Jira post-function screen showing a conditional execution script that checks the status of subtasks before triggering the post-function

But that's not all! Note that we have not yet specified that the parent issue should only be closed if all of the subtasks are also done. Let's add a condition to the Transition issue(s) post function for that.

  • From the Post Functions tab, edit the Transition issue(s) post function we created above.
  • Click Advanced options near the bottom of the screen, then click Settings.
  • Check the box to run this post-function only if a condition is verified.
  • In the script editor, enter the following script:
{% set stories = targetIssue | subtasks %}
{% set trigger = true %}
{% for story in stories %}
	{% if story.fields.status.name != "Done" %}
		{% set trigger = false %}
	{% endif %}
{% endfor %}
{{ trigger }}
  • Publish your workflow and check your work.

Read the documentationExplore usage examples for JMWE Post Functions
